Water Treatment Plant

Specialized Water Purification Systems – By Bluedrop Chemicals

We provide custom-built treatment systems designed for specific water contamination problems commonly seen in:

Borewell water

Surface water

Industrial process water

Treated STP water (reuse)

Agricultural or rural water

—

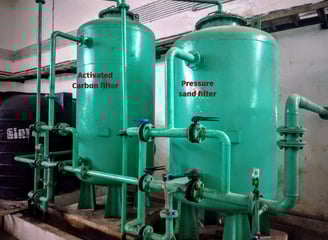

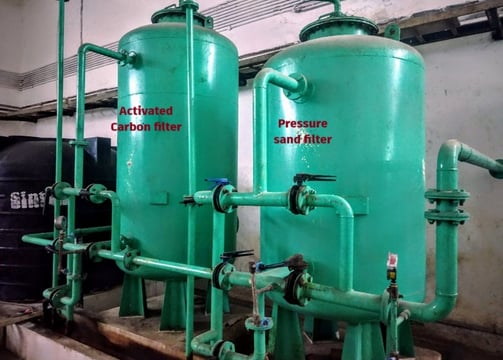

1️⃣ Turbidity Removal Plant

✅ Purpose: To remove suspended particles, mud, silt, algae, etc.

✅ Common Issue: Cloudy or muddy water

✅ Process Used:

Coagulation & Flocculation (Alum / PAC)

Pressure Sand Filter (PSF)

Cartridge Filter (5 micron / 1 micron)

✅ Applications:

Apartments, rural water supply, hospitals, construction

—

2️⃣ Colour Removal Plant

✅ Purpose: To remove yellow/brown/black color due to organic or metal content

✅ Causes: Tannins, Iron, Humic acid, Organic decay

✅ Process:

Activated Carbon Filter (High IV)

Oxidation + Filtration (with KMnO₄, Ozone, etc.)

UF membrane (optional)

✅ Industries: Paper, Textile, Surface Water Treatment

—

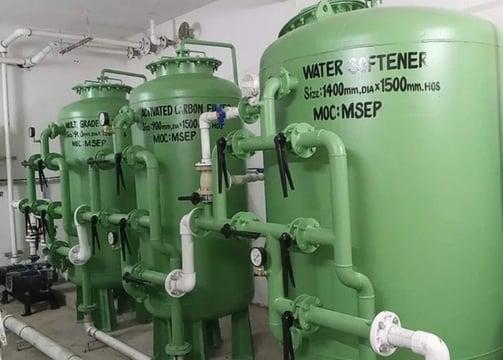

3️⃣ Hardness Removal Plant

✅ Purpose: Remove calcium and magnesium salts causing scaling

✅ Problem: White scaling on taps, pipes, heating elements

✅ Process:

Ion Exchange Softener System

Salt Regeneration

Automatic or Manual Operation

✅ Applications:

Boilers, Homes, Industries, Hospitals, Laundries

—

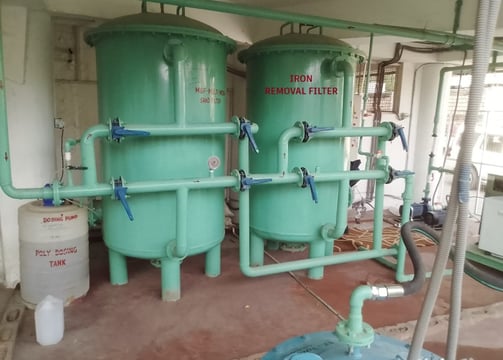

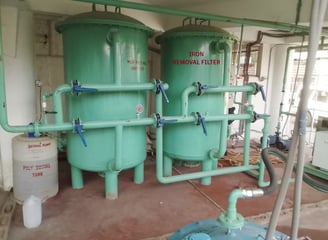

4️⃣ Iron Removal Plant

✅ Purpose: Remove dissolved iron (Fe2+ / Fe3+) causing reddish stains, foul smell

✅ Capacity: Custom from 1000 LPH to 10,000 LPH

✅ Max Iron Removal: Upto 12 mg/L

✅ Process:

Aeration + Oxidation

Iron Removal Filter Media (Manganese Dioxide / BIRM / Greensand)

Sand + Carbon Filter (Optional)

✅ Usage: Borewell Water, Homes, Flats, Pharma, Schools

—

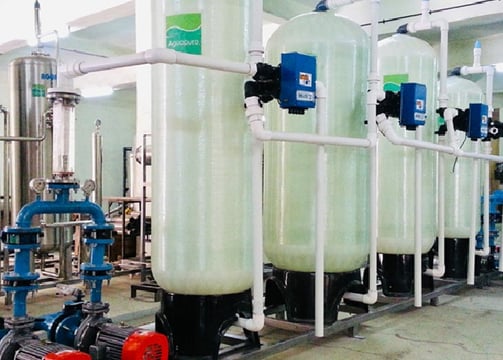

5️⃣ Demineralization (DM) Plant

✅ Purpose: Total removal of dissolved salts (TDS = 0 ppm)

✅ Used For: High-purity water for industrial applications

✅ Process:

Cation + Anion Resin Column

Mixed Bed Unit (Optional)

Conductivity Monitor

Acid + Alkali Regeneration Unit

✅ Industries: Electronics, Laboratories, Power Plants, Pharma

—

6️⃣ Pesticides Removal Plant

✅ Purpose: Remove toxic pesticide residues in contaminated surface water

✅ Problem: Often seen in agricultural or canal-based water

✅ Treatment Process:

Pre-Chlorination

Granular Activated Carbon Filter (High Surface Area)

UF Membrane or Nano Filter (Optional)

Reverse Osmosis (Final Barrier)

✅ Application: Rural Water, Schools, Community Water Plants

—

7️⃣ Phosphate Removal Plant

✅ Purpose: Remove phosphate from water – which causes algae bloom or scaling

✅ Industries Affected: Food, Fertilizer, STP Treated Water

✅ Process:

Alum / Ferric Dosing (Chemical Precipitation)

Lamella Clarifier or Settling Tank

Sand Filter + Activated Carbon

Optional RO/UF for polishing

✅ Use Case: Wastewater Tertiary Treatment before reuse or discharge

—

📌 Common Optional Features for All Above Plants

Fully Automatic or Semi-Auto Panel

FRP/MS Skid Mounted or RCC Civil Model

Flow Meter, Pressure Gauges

UV, Ozone, or UF as per final use

Treated Water Tank + Reuse Pump

—
